Intro to Statistics for Data Science

Descriptive statistics

Data types

The data is categorized in two main groups

• categorical data: ordinals and nominals

• numerical data: discrete and continuous

the following dataset contains all the data types

import pandas as pd

df = pd.read_csv("cars.csv")

df

	manufacturer_name	model_name	transmission	color	odometer_value	year_produced	engine_fuel	engine_has_gas	engine_type	engine_capacity	...	feature_1	feature_2	feature_3	feature_4	feature_5	feature_6	feature_7	feature_8	feature_9	duration_listed
0	Subaru	Outback	automatic	silver	190000	2010	gasoline	False	gasoline	2.5	...	True	True	True	False	True	False	True	True	True	16
1	Subaru	Outback	automatic	blue	290000	2002	gasoline	False	gasoline	3.0	...	True	False	False	True	True	False	False	False	True	83
2	Subaru	Forester	automatic	red	402000	2001	gasoline	False	gasoline	2.5	...	True	False	False	False	False	False	False	True	True	151
3	Subaru	Impreza	mechanical	blue	10000	1999	gasoline	False	gasoline	3.0	...	False	False	False	False	False	False	False	False	False	86
4	Subaru	Legacy	automatic	black	280000	2001	gasoline	False	gasoline	2.5	...	True	False	True	True	False	False	False	False	True	7
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
38526	Chrysler	300	automatic	silver	290000	2000	gasoline	False	gasoline	3.5	...	True	False	False	True	True	False	False	True	True	301
38527	Chrysler	PT Cruiser	mechanical	blue	321000	2004	diesel	False	diesel	2.2	...	True	False	False	True	True	False	False	True	True	317
38528	Chrysler	300	automatic	blue	777957	2000	gasoline	False	gasoline	3.5	...	True	False	False	True	True	False	False	True	True	369
38529	Chrysler	PT Cruiser	mechanical	black	20000	2001	gasoline	False	gasoline	2.0	...	True	False	False	False	False	False	False	False	True	490
38530	Chrysler	Voyager	automatic	silver	297729	2000	gasoline	False	gasoline	2.4	...	False	False	False	False	False	False	False	False	True	632

38531 rows × 30 columns

data types in pandas

we can get the data types of each column with df.dtypes

df.dtypes

manufacturer_name     object
model_name            object
transmission          object
color                 object
odometer_value         int64
year_produced          int64
engine_fuel           object
engine_has_gas          bool
engine_type           object
engine_capacity      float64
body_type             object
has_warranty            bool
state                 object
drivetrain            object
price_usd            float64
is_exchangeable         bool
location_region       object
number_of_photos       int64
up_counter             int64
feature_0               bool
feature_1               bool
feature_2               bool
feature_3               bool
feature_4               bool
feature_5               bool
feature_6               bool
feature_7               bool
feature_8               bool
feature_9               bool
duration_listed        int64
dtype: object

Here we will see the data types and they are identified in the following manner:

• Categorical: object, bool

• Numerical: int64 (discrete), float64 (contínuous)

.describe()

.describe() will show the main statistics for the datasets

df.describe()

	odometer_value	year_produced	engine_capacity	price_usd	number_of_photos	up_counter	duration_listed
count	38531.000000	38531.000000	38521.000000	38531.000000	38531.000000	38531.000000	38531.000000
mean	248864.638447	2002.943734	2.055161	6639.971021	9.649062	16.306091	80.577249
std	136072.376530	8.065731	0.671178	6428.152018	6.093217	43.286933	112.826569
min	0.000000	1942.000000	0.200000	1.000000	1.000000	1.000000	0.000000
25%	158000.000000	1998.000000	1.600000	2100.000000	5.000000	2.000000	23.000000
50%	250000.000000	2003.000000	2.000000	4800.000000	8.000000	5.000000	59.000000
75%	325000.000000	2009.000000	2.300000	8990.000000	12.000000	16.000000	91.000000
max	1000000.000000	2019.000000	8.000000	50000.000000	86.000000	1861.000000	2232.000000

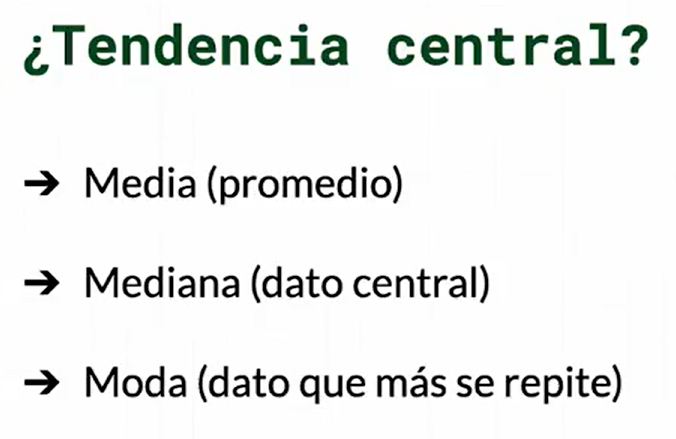

Measures of central tendency

Mean

df['price_usd'].mean()

6639.971021255613

Median

df['price_usd'].median()

4800.0

Analyzing data distribution

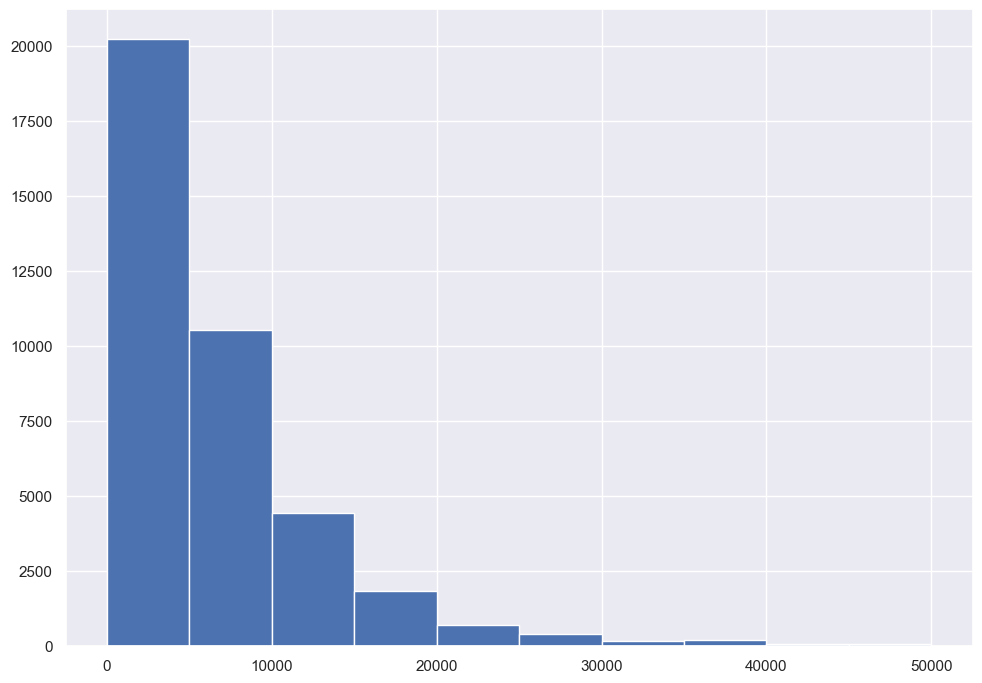

df["price_usd"].plot.hist(bins=20);

Here you can see data concentration

import seaborn as sns

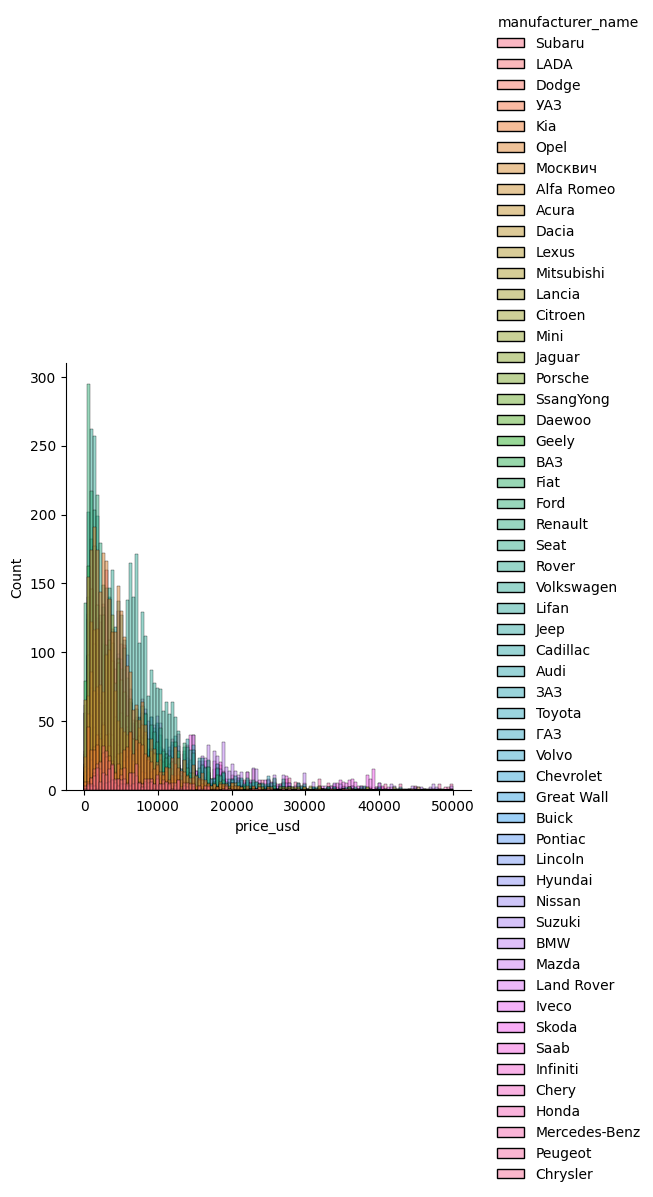

sns.displot(data = df, x = "price_usd", hue = "manufacturer_name");

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\axisgrid.py:118: UserWarning: The figure layout has changed to tight
  self._figure.tight_layout(*args, **kwargs)

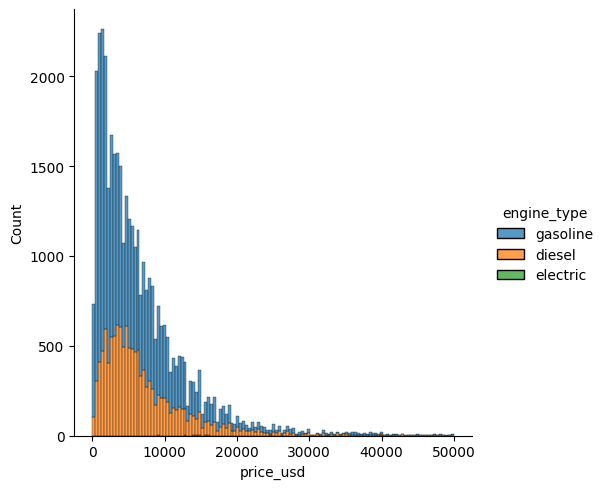

Now, this chart is overloaded. You can’t clearly say the frequency of each brand. Let’s choose a column with less categories

sns.displot(data = df, x="price_usd", hue= "engine_type", multiple = "stack");

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\axisgrid.py:118: UserWarning: The figure layout has changed to tight
  self._figure.tight_layout(*args, **kwargs)

What happened with electric cars? why aren’t those visible? let’s dig further

df.groupby("engine_type").count()

	manufacturer_name	model_name	transmission	color	odometer_value	year_produced	engine_fuel	engine_has_gas	engine_capacity	body_type	...	feature_1	feature_2	feature_3	feature_4	feature_5	feature_6	feature_7	feature_8	feature_9	duration_listed
engine_type
diesel	12874	12874	12874	12874	12874	12874	12874	12874	12874	12874	...	12874	12874	12874	12874	12874	12874	12874	12874	12874	12874
electric	10	10	10	10	10	10	10	10	0	10	...	10	10	10	10	10	10	10	10	10	10
gasoline	25647	25647	25647	25647	25647	25647	25647	25647	25647	25647	...	25647	25647	25647	25647	25647	25647	25647	25647	25647	25647

3 rows × 29 columns

Previous DF told us that there are just 10 electric cars, but it still is too hard to analyze, where are the electric cars?

Electric_Cars = df[(df["engine_type"]=="electric")]

Electric_Cars

	manufacturer_name	model_name	transmission	color	odometer_value	year_produced	engine_fuel	engine_has_gas	engine_type	engine_capacity	...	feature_1	feature_2	feature_3	feature_4	feature_5	feature_6	feature_7	feature_8	feature_9	duration_listed
8782	Fiat	500	automatic	orange	27000	2013	electric	False	electric	NaN	...	True	False	True	True	True	False	True	True	True	77
9048	Fiat	500	automatic	orange	49000	2014	electric	False	electric	NaN	...	False	False	True	False	True	False	True	False	True	11
24226	Chevrolet	Volt	automatic	silver	168000	2013	electric	False	electric	NaN	...	False	False	True	False	False	False	True	True	True	6
25943	Nissan	Leaf	automatic	white	57357	2015	electric	False	electric	NaN	...	True	True	True	True	True	True	True	True	True	75
26203	Nissan	Leaf	automatic	blue	97400	2011	electric	False	electric	NaN	...	True	False	False	False	False	False	True	False	True	64
26222	Nissan	Leaf	automatic	white	50000	2014	electric	False	electric	NaN	...	True	False	False	False	True	False	True	True	False	18
26582	Nissan	Leaf	automatic	black	84000	2014	electric	False	electric	NaN	...	False	False	False	False	True	True	True	True	True	138
26914	Nissan	Leaf	automatic	black	84500	2013	electric	False	electric	NaN	...	True	False	True	False	True	True	True	True	True	58
27554	BMW	i3	automatic	white	54150	2015	electric	False	electric	NaN	...	True	True	True	False	True	True	True	True	True	18
29590	BMW	i3	automatic	other	67000	2018	electric	False	electric	NaN	...	True	True	True	True	True	True	True	True	True	57

10 rows × 30 columns

Measures of dispersion

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

df = pd.read_csv("cars.csv")

print(df.head(5))

  manufacturer_name model_name transmission   color  odometer_value  \
0            Subaru    Outback    automatic  silver          190000
1            Subaru    Outback    automatic    blue          290000
2            Subaru   Forester    automatic     red          402000
3            Subaru    Impreza   mechanical    blue           10000
4            Subaru     Legacy    automatic   black          280000

   year_produced engine_fuel  engine_has_gas engine_type  engine_capacity  \
0           2010    gasoline           False    gasoline              2.5
1           2002    gasoline           False    gasoline              3.0
2           2001    gasoline           False    gasoline              2.5
3           1999    gasoline           False    gasoline              3.0
4           2001    gasoline           False    gasoline              2.5

   ... feature_1  feature_2 feature_3 feature_4  feature_5  feature_6  \
0  ...      True       True      True     False       True      False
1  ...      True      False     False      True       True      False
2  ...      True      False     False     False      False      False
3  ...     False      False     False     False      False      False
4  ...      True      False      True      True      False      False

  feature_7  feature_8  feature_9  duration_listed
0      True       True       True               16
1     False      False       True               83
2     False       True       True              151
3     False      False      False               86
4     False      False       True                7

[5 rows x 30 columns]

Standard deviation

let’s calculate the standart deviation of the column “price_usd”

df["price_usd"].std()

6428.1520182029035

Range - (min, max values)

pricerange = df["price_usd"].max() - df["price_usd"].min()

print(pricerange)

49999.0

Quartiles

median = df["price_usd"].median()
Q1 = df["price_usd"].quantile(q=0.25)
Q3 = df["price_usd"].quantile(q=0.75)
min_val = df['price_usd'].quantile(q=0)
max_val = df['price_usd'].quantile(q=1.0)
print("min val:", min_val, ", Quartile1:", Q1, ", Median:" ,median, ", Quartile3" ,Q3, ", max val" , max_val)

min val: 1.0 , Quartile1: 2100.0 , Median: 4800.0 , Quartile3 8990.0 , max val 50000.0

Outliers detection

Data that is not between $\([Q_1 -1.5IQR\)\( , \)\(Q_3 + 1.5IQR]\)$ are considered outliers

iqr = Q3 - Q1

#left limit
minlimit = Q1 - 1.5*iqr
#right limit
maxlimit = Q3 + 1.5*iqr

print("range for outliers detection is:", minlimit, ",", maxlimit)

range for outliers detection is: -8235.0 , 19325.0

sns.set(rc={'figure.figsize':(11.7,8.27)})
f, (ax_hist, ax_box) = plt.subplots(2, sharex=True, gridspec_kw={"height_ratios": (.6, .4)})
sns.histplot(df['price_usd'], ax=ax_hist)
sns.boxplot(df['price_usd'], ax=ax_box)
ax_hist.set(xlabel='')

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):

[Text(0.5, 0, '')]

Scatterplots for data analysis

import pandas as pd
import seaborn as sns

iris = sns.load_dataset("iris")

iris.head()

	sepal_length	sepal_width	petal_length	petal_width	species
0	5.1	3.5	1.4	0.2	setosa
1	4.9	3.0	1.4	0.2	setosa
2	4.7	3.2	1.3	0.2	setosa
3	4.6	3.1	1.5	0.2	setosa
4	5.0	3.6	1.4	0.2	setosa

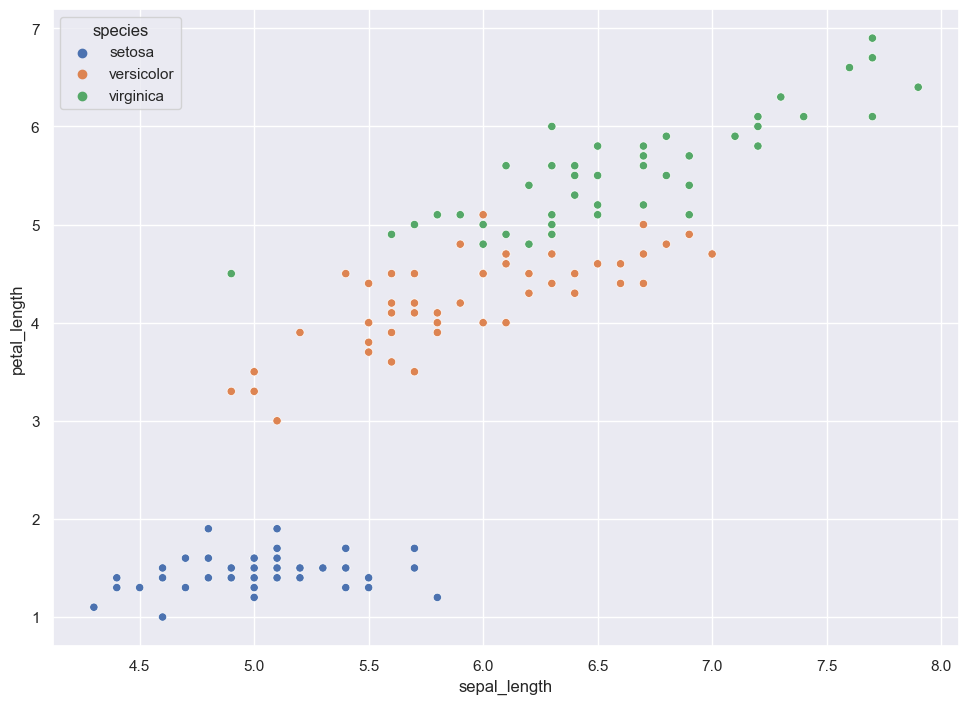

Scatterplot segmented by categories

sns.scatterplot(data=iris, x="sepal_length", y="petal_length", hue="species");

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

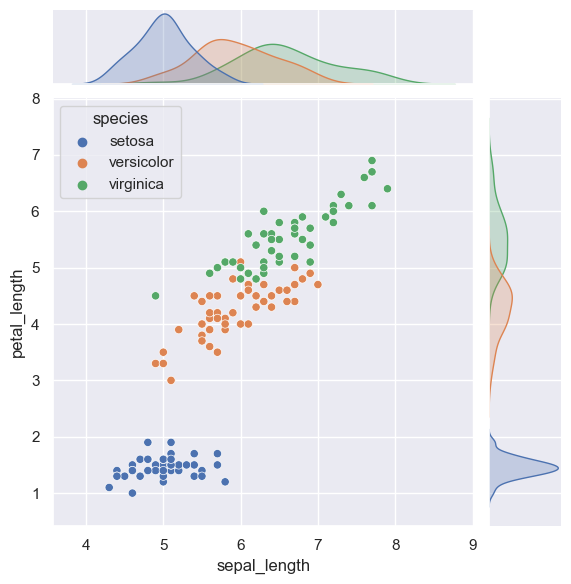

Jointplot

sns.jointplot(data=iris, x="sepal_length", y="petal_length", hue="species")

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):

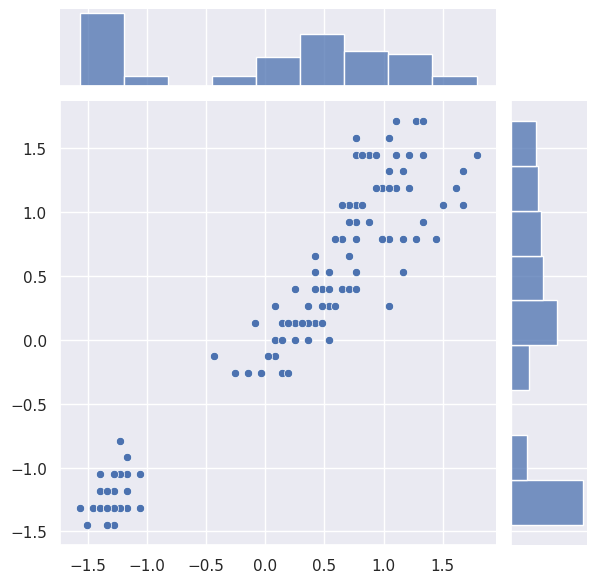

<seaborn.axisgrid.JointGrid at 0x164db15e510>

lm plot per categories

sns.lmplot(data=iris, x="sepal_length", y="petal_length", hue="species");

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\axisgrid.py:118: UserWarning: The figure layout has changed to tight
  self._figure.tight_layout(*args, **kwargs)

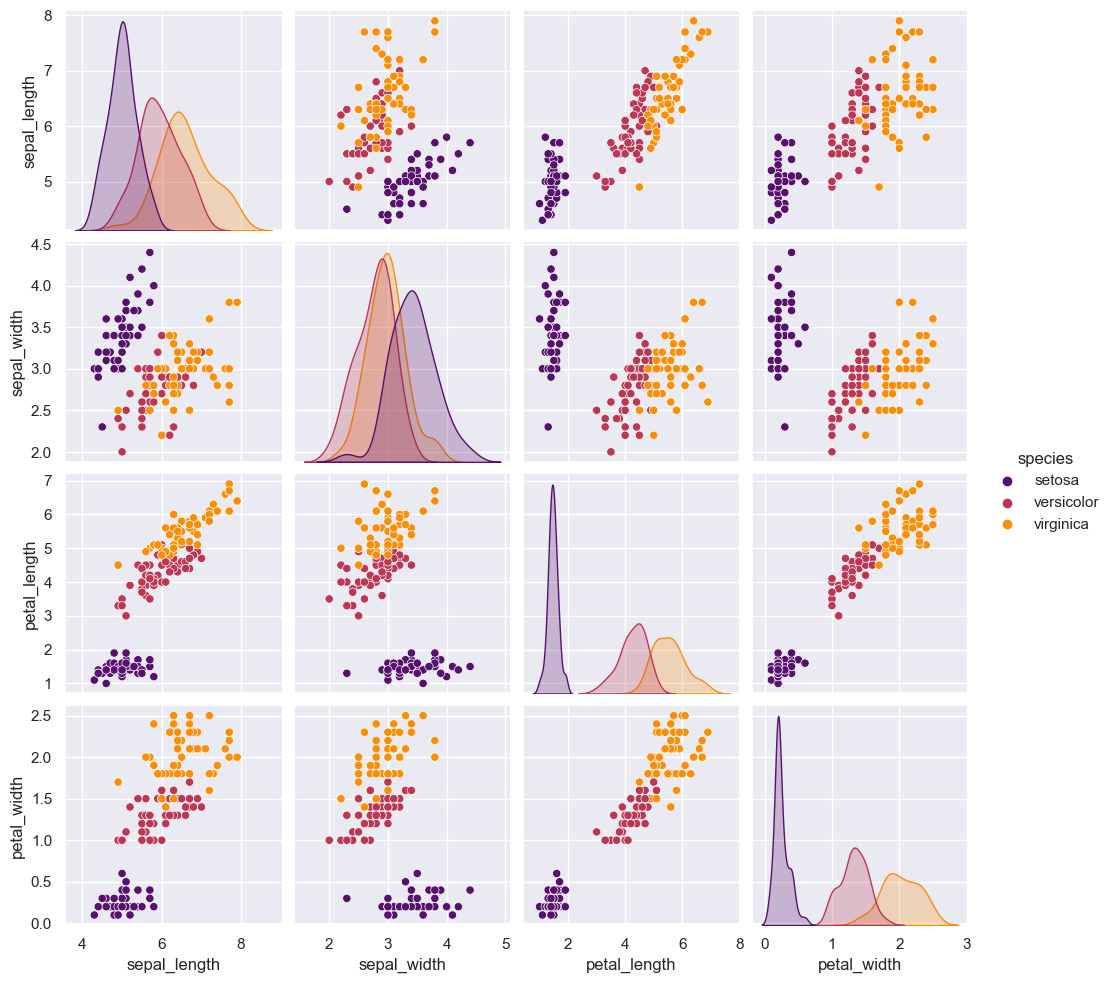

sns.pairplot(data=iris, hue="species", palette="inferno", diag_kind="kde");

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\axisgrid.py:118: UserWarning: The figure layout has changed to tight
  self._figure.tight_layout(*args, **kwargs)

Pipelines de procesamiento (Variables numéricas)

this chapter will focus on data processing. The data must meet some requirements to be used as an input to a machine learning model

Escalamiento lineal (Normalizacion)

El escalamiento lineal (o normalización) es necesario debido a que los modelos de machine learning son eficientes en la medida que todos los datos tengan la misma escala.

ejemplo No se debe introducir en un modelo de Machine Learning:

• una variable con valores entre [-1, 1]

• otra variable entre [1.000.000, 10.000.000]

La diferencia de las escalas es computacionalmente insostenible.

Tipicamente los modelos de machine learning son eficientes en el rango de [-1, 1]. No todos

Dicho esto, si tus datos no estan en ese rango, debes transformalos para que si esten.

cuando normalizar?

Cuando los datos tienen una distribucion Normal o distribucion Uniforme.

En otras palabras, cuando los datos estan uniformemente distribuidos mas o menos o cuando tienen una distribucion simetrica

Tipos de normalizacion

OJO!!!

Estas transformaciones se aplican a variables con:

• distribucion normal

• distribucion uniforme

Existen distintas formas de normalizar datos, a continuacion se explican

import timeit
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn import datasets, linear_model

#se importan los datos para trabajar
X, y = datasets.load_diabetes(return_X_y=True)

#subset de X, se selecciona la tercera columna
raw = X[:, None, 2]

plt.hist(raw)
plt.title("Original Data");

Explicacion de la transformación: raw = X[:, None, 2]

X tiene un shape de (442, 10) se quiere tener solo una columna -> shape (442, 1)

• : toma todas las columnas y filas.

• None indica la transformación del arreglo (newaxis)

• 2 Selecciona la 3ra columna de X.

Normalizacion max-min

max - min entre [-1, 1]

Esta normalizacion transforma todos los datos a un equivalente en un rango entre [-1,1]

\(X_i'={\frac {2X_i-X_{max}-X_{min}}{X_{max}-X_{min}}}\)

scaled = ( (2*raw) - min(raw) - max(raw) ) / ( max(raw) - min(raw) )

plt.hist(scaled)
plt.title("Max-Min Scaled data [1,1]");

print(max(scaled))

[1.]

max - min entre [0, 1]

Esta normalizacion transforma todos los datos a un equivalente en un rango entre [0,1]

\(X_i'={\frac {X_i-X_{min}}{X_{max}-X_{min}}}\)

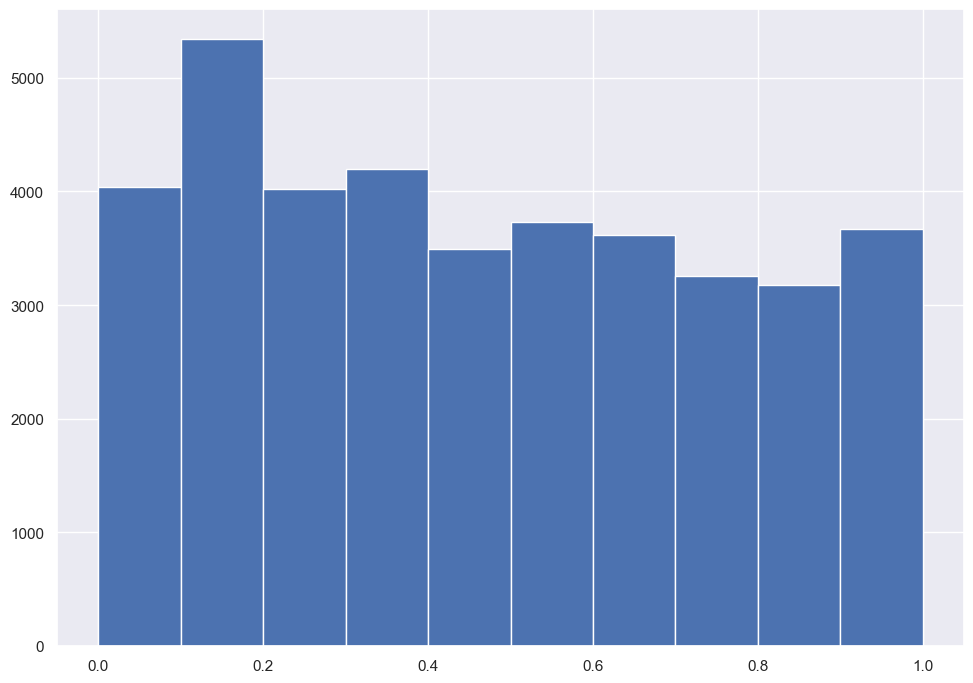

scaled2 = ( raw - min(raw) ) / ( max(raw) - min(raw) )

plt.hist(scaled2)
plt.title("Max-Min Scaled data [0,1]");

Normalizacion Z-score

Es el tipo de normalizacion mas comun

Consiste en restarle a cada dato el promedio y dividirlo entre la desviacion estandar

\(X_i'={\frac {X_i-\mu}{\sigma}}\)

Esta transformacion convierte la distribucion de los datos a una normal estandar, con rango [-1, 1]

distribucion normal estandar:

• es una distribucion donde (\(\mu\) = 0) & (\(\sigma\) = 1)

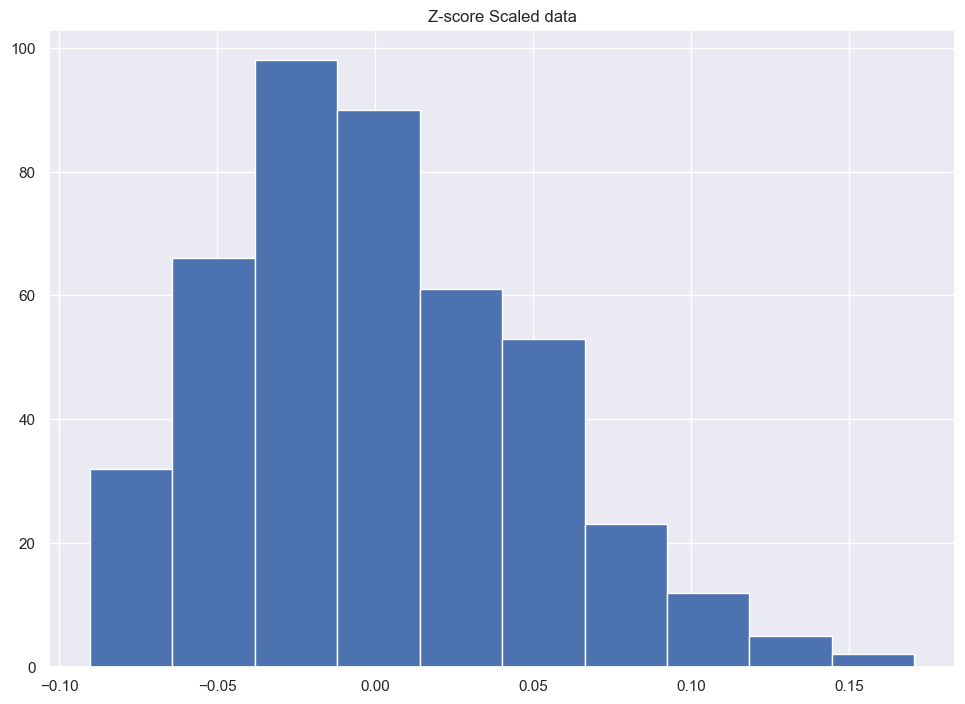

z_scaled = raw - np.mean(raw) / np.std(raw)

plt.hist(z_scaled)
plt.title("Z-score Scaled data");

Clipping

Este metodo no es el mas recomendable ya que modifica los valores originales del dataset sesgando los outliers:

este metodo consiste en definir un intervalo, y los datos que esten por fuera del intervalo, convertirlos automaticamente al valor mas cercano del intervalo.

Ejemplo

Suponga que el intervalo se define entre [-2, 4]

• si el registro es menor que -2, automaticamente se convierte en -2

• si el registro es mayor que 4, automaticamente se converte en 4

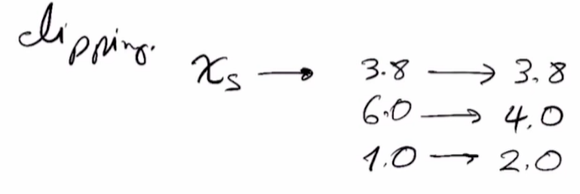

La transformacion quedaria de la siguiente manera

Como se escogen los valores minimos y maximos del intervalo?

Para el metodo clipping, se escogen arbitrariamente o segun la necesidad de la medicion.

tambien puede hacerse con percentiles, de este modo el metodo clipping se conviete en windzoriding

Verificacion de optimizacion en modelo de ML

# modelos para entrenamiento
def train_raw():
    linear_model.LinearRegression().fit(raw, y)

def train_scaled():
    linear_model.LinearRegression().fit(scaled, y)

def train_z_scaled():
    linear_model.LinearRegression().fit(z_scaled, y)


# medicion de tiempo de ejecucion de cada modelo
#number = 1000 indica al codigo que ejecute el modelo 1000 veces

raw_time = timeit.timeit(train_raw, number = 1000)
scaled_time = timeit.timeit(train_raw, number = 1000)
z_scaled_time = timeit.timeit(train_raw, number = 1000)
print('training time for raw data:', raw_time)
print('training time for scaled data :', scaled_time)
print('training time for z_scaled data :', z_scaled_time)

training time for raw data: 1.0693767000338994
training time for scaled data : 1.0315274000167847
training time for z_scaled data : 1.1051799000124447

Normalizacion en datos asimetricos (no normales)

Cuando se tienen datos con cualquier distribucion no normal, se procede asi:

1. se les aplica una transformacion para volverlos normales.

2. se aplica escalamiento lineal.

cuales son los tipos de transformaciones?

Todas las funciones matematicas no lineales (logaritmos, sigmoides, polinomios de grado 2+) son funciones no lineales que se le pueden aplicar a los datos para buscar darle simetria a la distribucion.

ejemplo transformacion: tangente hiperbolica

supongamos que tenemos unos datos sesgados a la izquierda tal como a continuacion:

una transformacion sugerida, es una tangente hiperbolica:

Notese del grafico de la derecha que:

• Por cada delta en los datos cercanos a cero, el rango en la funcion transformada es mas amplio.

• Para datos mucho mayores que cero, el rango es mas estrecho.

Lo dicho anteriormente se refleja en la distribucion transformada (linea morada) de la siguiente manera:

si aun no se logra una distribucion lo suficientemente simetrica, se introduce un parametro “a”, tal que:

\(y = tanh({\frac {x}{a}})\)

El parametro a modifica la deformacion de la funcion \(y = tanh({\frac {x}{a}})\), de esta manera se puede cambiar la distribucion de los datos despues de la transformacion.

las lineas morada, roja y mostaza son distintos valores de a, con lo cual la funcion cambia su forma

Ejemplo:

El dataset cars.csv contiene la variable price_usd,que esta fuertemente sesgada a la izquierda.

df = pd.read_csv('cars.csv')

#mostrando los datos
price = df.price_usd
print(price.head())

#histograma para ver distribucion
plt.hist(price);

0    10900.00
1     5000.00
2     2800.00
3     9999.00
4     2134.11
Name: price_usd, dtype: float64

ahora, le aplicaremos una transformacion de tangente hiperbolica para darle simetria o uniformidad:

#transformacion
x_s = np.tanh(price)

plt.hist(x_s);

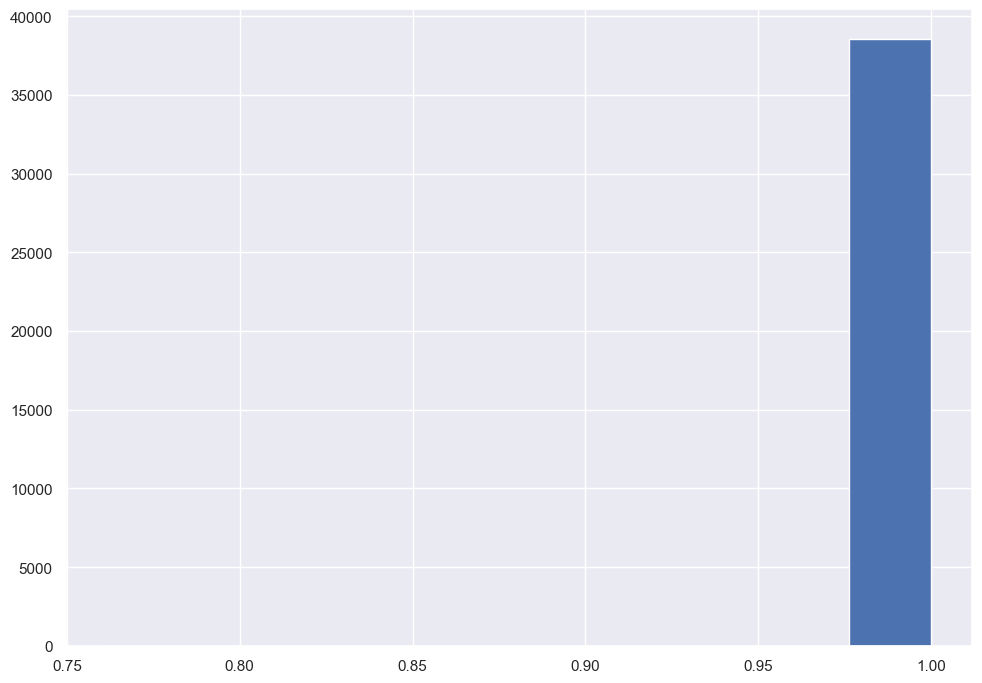

la funcion ha comprimido todos los registros en un rango muy estrecho, entonces se usa el parametro a para arreglar esto

#transformacion2
a = 10000

x_s_adj = np.tanh(price/a)

plt.hist(x_s_adj);

ejemplo transformacion: raiz cuadrada

suponiendo que se tienen unos datos con una distribucion como la siguiente:

una transformacion sugerida, es una raiz cuadrada:

Notese del grafico de la derecha que:

• Por cada delta en los datos cercanos a cero, el rango en la funcion transformada es mas amplio.

• Para datos mucho mayores que cero, el rango es mas estrecho.

Lo dicho anteriormente se refleja en la distribucion transformada (linea morada) de la siguiente manera:

la funcion raiz cuadrada se puede expresar de manera polinomial, y hay un abanico infinito de exponentes que puedes usar para transformar los datos a una distribucion mas simetrica

Pipelines de procesamiento (Variables categoricas)

Comparativa entre Dummy & One-hot

Conceptualmente son diferentes, pero el metodo dummy no esta implementado en las librerias que se explican a continuacion. En cambio, se utiliza el metodo one-hot

Creacion de variables tipo one-hot

import pandas as pd

df = pd.read_csv('cars.csv')

#se usa la columna engine type, cuyos valores son (diesel, electric, gasoline)
df

	manufacturer_name	model_name	transmission	color	odometer_value	year_produced	engine_fuel	engine_has_gas	engine_type	engine_capacity	...	feature_1	feature_2	feature_3	feature_4	feature_5	feature_6	feature_7	feature_8	feature_9	duration_listed
0	Subaru	Outback	automatic	silver	190000	2010	gasoline	False	gasoline	2.5	...	True	True	True	False	True	False	True	True	True	16
1	Subaru	Outback	automatic	blue	290000	2002	gasoline	False	gasoline	3.0	...	True	False	False	True	True	False	False	False	True	83
2	Subaru	Forester	automatic	red	402000	2001	gasoline	False	gasoline	2.5	...	True	False	False	False	False	False	False	True	True	151
3	Subaru	Impreza	mechanical	blue	10000	1999	gasoline	False	gasoline	3.0	...	False	False	False	False	False	False	False	False	False	86
4	Subaru	Legacy	automatic	black	280000	2001	gasoline	False	gasoline	2.5	...	True	False	True	True	False	False	False	False	True	7
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
38526	Chrysler	300	automatic	silver	290000	2000	gasoline	False	gasoline	3.5	...	True	False	False	True	True	False	False	True	True	301
38527	Chrysler	PT Cruiser	mechanical	blue	321000	2004	diesel	False	diesel	2.2	...	True	False	False	True	True	False	False	True	True	317
38528	Chrysler	300	automatic	blue	777957	2000	gasoline	False	gasoline	3.5	...	True	False	False	True	True	False	False	True	True	369
38529	Chrysler	PT Cruiser	mechanical	black	20000	2001	gasoline	False	gasoline	2.0	...	True	False	False	False	False	False	False	False	True	490
38530	Chrysler	Voyager	automatic	silver	297729	2000	gasoline	False	gasoline	2.4	...	False	False	False	False	False	False	False	False	True	632

38531 rows × 30 columns

Pandas one-hot

# a pesar de que dice get_dummies, realmente esta haciendo one-hot
pd.get_dummies(df["engine_type"])

	diesel	electric	gasoline
0	False	False	True
1	False	False	True
2	False	False	True
3	False	False	True
4	False	False	True
...	...	...	...
38526	False	False	True
38527	True	False	False
38528	False	False	True
38529	False	False	True
38530	False	False	True

38531 rows × 3 columns

One-hot con scikit-learn

import sklearn.preprocessing as preprocessing

#encoder = metodo de codificacion de variables categoricas
#handle_unknown = codifica las variables desconocidas como un vector de ceros
encoder = preprocessing.OneHotEncoder(handle_unknown='ignore')

#ajustando el encoder a las categorias de mi dataset
#(se le pasa la lista de valores sobre los cuales crea las categorias)

encoder.fit(df[['engine_type']].values)

OneHotEncoder(handle_unknown='ignore')

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

# aceite es una categoria random para ver como codifica una variable que no existe
encoder.transform([['gasoline'],['diesel'],['aceite']]).toarray()

array([[0., 0., 1.],
       [1., 0., 0.],
       [0., 0., 0.]])

Note que las categorias que no existen se codifican como [0, 0, 0, …, 0]

Que pasa si se hace con variables numericas discretas?

One hot con variable numerica discreta

# se ajusta el encoder a las categorias (en este caso cada categoria es un año)
encoder.fit(df[["year_produced"]].values)

OneHotEncoder(handle_unknown='ignore')

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

# se intenta con un año inexistente para probar la codificacion:
encoder.transform([[2016],[2009],[3050]]).toarray()

array([[0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]])

Aqui se evidencia una desventaja del one-hot. Dado que hay muchas variables categoricas, el dataset se hace inmenso y no es deseable para terminos de performance en nuestro modelo

Correlaciones

pairplot()

Una manera de ver las correlaciones entre todas las variables en un analisis exploratorio de datos es mediante el pairplot:

import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
from sklearn.preprocessing import StandardScaler

#datos para trabajar
iris = sns.load_dataset('iris')

#grafico para identificar correlaciones
sns.pairplot(iris, hue = 'species');

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1119: FutureWarning: use_inf_as_na option is deprecated and will be removed in a future version. Convert inf values to NaN before operating instead.
  with pd.option_context('mode.use_inf_as_na', True):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):
C:\Users\admin\miniconda3\Lib\site-packages\seaborn\_oldcore.py:1498: FutureWarning: is_categorical_dtype is deprecated and will be removed in a future version. Use isinstance(dtype, CategoricalDtype) instead
  if pd.api.types.is_categorical_dtype(vector):

C:\Users\admin\miniconda3\Lib\site-packages\seaborn\axisgrid.py:118: UserWarning: The figure layout has changed to tight
  self._figure.tight_layout(*args, **kwargs)

Covarianza

Sea la covarianza entre dos variables:

Coeficiente de correlacion

Entonces el coeficiente de correlacion (de pearson) se calcula de la siguiente manera:

este valor se encuentra entre [-1, 1]

• si \(\rho \approx 1\), hay correlacion directa

• si \(\rho \approx -1\), hay correlacion inversa

• si \(\rho \approx 0\), no hay correlacion

ejemplo de correlacion entre dos variables:

Ejemplo: Matriz de covarianzas

Para este ejemplo, se hallan las covarianzas entre las variables numericas del dataset iris:

sns.heatmap(iris.corr(), annot=True);

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[38], line 1
----> 1 sns.heatmap(iris.corr(), annot=True);

File ~\miniconda3\Lib\site-packages\pandas\core\frame.py:10707, in DataFrame.corr(self, method, min_periods, numeric_only)
  10705 cols = data.columns
  10706 idx = cols.copy()
> 10707 mat = data.to_numpy(dtype=float, na_value=np.nan, copy=False)
  10709 if method == "pearson":
  10710     correl = libalgos.nancorr(mat, minp=min_periods)

File ~\miniconda3\Lib\site-packages\pandas\core\frame.py:1892, in DataFrame.to_numpy(self, dtype, copy, na_value)
   1890 if dtype is not None:
   1891     dtype = np.dtype(dtype)
-> 1892 result = self._mgr.as_array(dtype=dtype, copy=copy, na_value=na_value)
   1893 if result.dtype is not dtype:
   1894     result = np.array(result, dtype=dtype, copy=False)

File ~\miniconda3\Lib\site-packages\pandas\core\internals\managers.py:1656, in BlockManager.as_array(self, dtype, copy, na_value)
   1654         arr.flags.writeable = False
   1655 else:
-> 1656     arr = self._interleave(dtype=dtype, na_value=na_value)
   1657     # The underlying data was copied within _interleave, so no need
   1658     # to further copy if copy=True or setting na_value
   1660 if na_value is lib.no_default:

File ~\miniconda3\Lib\site-packages\pandas\core\internals\managers.py:1715, in BlockManager._interleave(self, dtype, na_value)
   1713     else:
   1714         arr = blk.get_values(dtype)
-> 1715     result[rl.indexer] = arr
   1716     itemmask[rl.indexer] = 1
   1718 if not itemmask.all():

ValueError: could not convert string to float: 'setosa'

Valores propios

En álgebra lineal podemos tener ecuaciones donde la incógnita es un vector, supongamos la siguiente ecuación:

• A es una matriz cuadrada NxN con elementos conocidos

• \(\overrightarrow{x}\) es un vector columna cuyas componentes desconocemos

Entonces, lo que esta ecuación nos pregunta es:

¿Existen vectores \(\overrightarrow{x}\) tales que al multiplicarlos por la matriz A eso sea equivalente a simplemente multiplicarlos por un número?

Si tal vector existe y está asociado a un valor específico de \(\lambda\) entonces:

• El vector \(\overrightarrow{x}\) es un vector propio de la matriz A

• \(\lambda\) es su valor propio correspondiente.

ejemplo para matriz 2x2

Consideremos una matriz 2 x 2

haciendo el producto matriz por vector esto se traduce a un sistema de ecuaciones:

Debemos encontrar las combinaciones de x, y que satisfacen el sistema de ecuaciones.

Lo cual python resuelve de la siguiente manera:

#Se crea la matriz a
A = np.array([[1,2], [1,0]])

#le pedimos los valores y vectores propios a python
values, vectors = np.linalg.eig(A)

np.linalg.eig(A) lo que hace es calcular directamente los valores y vectores propios, llamados values y vectors en el código, respectivamente.

los valores \(\lambda\) ↓↓↓

values

array([ 2., -1.])

los vectores \(\overrightarrow{x}\) ↓↓↓

vectors

array([[ 0.89442719, -0.70710678],
       [ 0.4472136 ,  0.70710678]])

los vectores propios que entrega np.linalg.eig(A) son vectores columnas, es decir:

• el vector vectors[:, 0], esta asociado al valor propio \(\lambda_0\)

• el vector vectors[:, 1], esta asociado al valor propio \(\lambda_1\)

y así sucesivamente.

Comprobacion de resultados

Comprobemos si \(A*\overrightarrow{x} = \lambda*\overrightarrow{x}\)

1. para \(\lambda_0\), \(\overrightarrow{x}_0\)

np.matmul(A, vectors[:,0])

array([1.78885438, 0.89442719])

values[0]*vectors[:,0]

array([1.78885438, 0.89442719])

Si son iguales ✅✅✅

2. para \(\lambda_1\), \(\overrightarrow{x}_1\)

np.matmul(A, vectors[:,1])

array([ 0.70710678, -0.70710678])

values[1]*vectors[:,1]

array([ 0.70710678, -0.70710678])

Tambien son iguales ✅✅✅

Principal Component Analysis (PCA)

La matriz de covarianza puede ser descompuesta en terminos de sus vectores y valores propios:

Tal que:

• El primer termino es una matriz donde cada columna son los vectores propios correspondientes

• El segundo termino es la matriz diagonal de valores propios

• El tercer termino es una matriz donde cada Fila son los vectores propios correspondientes (por eso se transpone)

Entonces, las componentes principales de una matriz son cada uno de los vectores propios

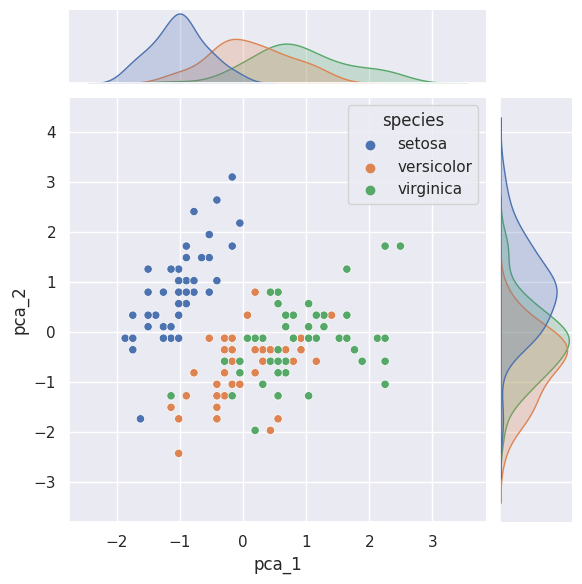

Aplicando PCA a dataset iris (con vectores y valores propios)

El objetivo identificar el minimo numero de variables necesarias para describir nuestro dataset

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.preprocessing import StandardScaler

# se importan los datos
iris = sns.load_dataset('iris')

# normalizacion Z a los datos
scaler = StandardScaler()
scaled = scaler.fit_transform(
    iris[['sepal_length', 'sepal_width', 'petal_length', 'petal_width']].values
    )

# se crea matriz de covarianza
covariance_matrix = np.cov(scaled.T)
covariance_matrix

array([[ 1.00671141, -0.11835884,  0.87760447,  0.82343066],
       [-0.11835884,  1.00671141, -0.43131554, -0.36858315],
       [ 0.87760447, -0.43131554,  1.00671141,  0.96932762],
       [ 0.82343066, -0.36858315,  0.96932762,  1.00671141]])

En el grafico de correlaciones, se le presta especial cuidado a la correlacion entre las variables petal_width y petal_length

sns.pairplot(iris)

<seaborn.axisgrid.PairGrid at 0x7f3b7f459730>

Entonces hagamos un jointplot con solo esas dos variables

# Diagrama con variables originales
sns.jointplot(x=iris["petal_length"], y=iris["petal_width"])

<seaborn.axisgrid.JointGrid at 0x7f3b7f49f970>

Otro jointplot con las mismas variables (pero estandarizadas)

# Mismo diagrama con variables estandarizadas
sns.jointplot(x = scaled[:, 2], y = scaled[:,3])

<seaborn.axisgrid.JointGrid at 0x7f3b8b6bbcd0>

Por que estandarizamos?

El PCA calcula la proyeccion de los vectores considerando que los datos estan centrados, (promedio = 0 y stdev = 1)

Se descompone la matriz en vectores y valores propios

Para obtener las componentes principales, y la respectiva varianza que capturan, hay que descomponer la matriz en vectores y valores propios.

# Descomposicion
eigen_values, eigen_vectors = np.linalg.eig(covariance_matrix)

valores propios:

eigen_values

array([2.93808505, 0.9201649 , 0.14774182, 0.02085386])

cada eigen_value (o valor propio) indica el porcentaje de la varianza total de los datos que es capturada por el vector propio correspondiente

vectores propios:

eigen_vectors

array([[ 0.52106591, -0.37741762, -0.71956635,  0.26128628],
       [-0.26934744, -0.92329566,  0.24438178, -0.12350962],
       [ 0.5804131 , -0.02449161,  0.14212637, -0.80144925],
       [ 0.56485654, -0.06694199,  0.63427274,  0.52359713]])

Ahora evaluemos que porcentaje de la varianza captura cada componente

variance_explained = []
for i in eigen_values:
    variance_explained.append((i/sum(eigen_values))*100)

print(variance_explained)

[72.9624454132999, 22.850761786701725, 3.6689218892828612, 0.5178709107154993]

Entonces se concluye:

• El primer componente (o autovalor) captura el 72.96% de la varianza total de las cuatro dimensiones

• El segundo componente captura el 2.85% de la variable

• Los dos primeros componentes explican mas del 95% de los datos, podrian simplemente despreciarse los otros dos

Ahora, como se transforman estos datos (que estan en cuatro dimensiones) tal que se reduzca el numero de dimensiones con base en esto?

Aplicando PCA a dataset iris (con numpy)

from sklearn.decomposition import PCA

# Indicamos que queremos quedarnos con dos componentes
pca = PCA(n_components=2)

# Se le aplica la transformacion (no al dataset original sino al escalado)
pca.fit(scaled)

PCA(n_components=2)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Si se quiere cuanta varianza explica cada componente, se puede usar el siguiente metodo de PCA

pca.explained_variance_ratio_

array([0.72962445, 0.22850762])

Lo cual coincide con lo que hicimos manualmente ;)

Ahora podemos proceder a hacer la transformacion de los datos

Entonces, al transformar el dataset original:

• Se crean nuevas variables, las cuales son combinaciones lineales de las antiguas

• Redujimos el numero de variables de 4 a 2

• estamos capturando mas del 95% de la varianza de los datos originales

# Se crea un nuevo conjunto de variables
reduced_scaled = pca.transform(scaled)

reduced_scaled

array([[-2.26470281,  0.4800266 ],
       [-2.08096115, -0.67413356],
       [-2.36422905, -0.34190802],
       [-2.29938422, -0.59739451],
       [-2.38984217,  0.64683538],
       [-2.07563095,  1.48917752],
       [-2.44402884,  0.0476442 ],
       [-2.23284716,  0.22314807],
       [-2.33464048, -1.11532768],
       [-2.18432817, -0.46901356],
       [-2.1663101 ,  1.04369065],
       [-2.32613087,  0.13307834],
       [-2.2184509 , -0.72867617],
       [-2.6331007 , -0.96150673],
       [-2.1987406 ,  1.86005711],
       [-2.26221453,  2.68628449],
       [-2.2075877 ,  1.48360936],
       [-2.19034951,  0.48883832],
       [-1.898572  ,  1.40501879],
       [-2.34336905,  1.12784938],
       [-1.914323  ,  0.40885571],
       [-2.20701284,  0.92412143],
       [-2.7743447 ,  0.45834367],
       [-1.81866953,  0.08555853],
       [-2.22716331,  0.13725446],
       [-1.95184633, -0.62561859],
       [-2.05115137,  0.24216355],
       [-2.16857717,  0.52714953],
       [-2.13956345,  0.31321781],
       [-2.26526149, -0.3377319 ],
       [-2.14012214, -0.50454069],
       [-1.83159477,  0.42369507],
       [-2.61494794,  1.79357586],
       [-2.44617739,  2.15072788],
       [-2.10997488, -0.46020184],
       [-2.2078089 , -0.2061074 ],
       [-2.04514621,  0.66155811],
       [-2.52733191,  0.59229277],
       [-2.42963258, -0.90418004],
       [-2.16971071,  0.26887896],
       [-2.28647514,  0.44171539],
       [-1.85812246, -2.33741516],
       [-2.5536384 , -0.47910069],
       [-1.96444768,  0.47232667],
       [-2.13705901,  1.14222926],
       [-2.0697443 , -0.71105273],
       [-2.38473317,  1.1204297 ],
       [-2.39437631, -0.38624687],
       [-2.22944655,  0.99795976],
       [-2.20383344,  0.00921636],
       [ 1.10178118,  0.86297242],
       [ 0.73133743,  0.59461473],
       [ 1.24097932,  0.61629765],
       [ 0.40748306, -1.75440399],
       [ 1.0754747 , -0.20842105],
       [ 0.38868734, -0.59328364],
       [ 0.74652974,  0.77301931],
       [-0.48732274, -1.85242909],
       [ 0.92790164,  0.03222608],
       [ 0.01142619, -1.03401828],
       [-0.11019628, -2.65407282],
       [ 0.44069345, -0.06329519],
       [ 0.56210831, -1.76472438],
       [ 0.71956189, -0.18622461],
       [-0.0333547 , -0.43900321],
       [ 0.87540719,  0.50906396],
       [ 0.35025167, -0.19631173],
       [ 0.15881005, -0.79209574],
       [ 1.22509363, -1.6222438 ],
       [ 0.1649179 , -1.30260923],
       [ 0.73768265,  0.39657156],
       [ 0.47628719, -0.41732028],
       [ 1.2341781 , -0.93332573],
       [ 0.6328582 , -0.41638772],
       [ 0.70266118, -0.06341182],
       [ 0.87427365,  0.25079339],
       [ 1.25650912, -0.07725602],
       [ 1.35840512,  0.33131168],
       [ 0.66480037, -0.22592785],
       [-0.04025861, -1.05871855],
       [ 0.13079518, -1.56227183],
       [ 0.02345269, -1.57247559],
       [ 0.24153827, -0.77725638],
       [ 1.06109461, -0.63384324],
       [ 0.22397877, -0.28777351],
       [ 0.42913912,  0.84558224],
       [ 1.04872805,  0.5220518 ],
       [ 1.04453138, -1.38298872],
       [ 0.06958832, -0.21950333],
       [ 0.28347724, -1.32932464],
       [ 0.27907778, -1.12002852],
       [ 0.62456979,  0.02492303],
       [ 0.33653037, -0.98840402],
       [-0.36218338, -2.01923787],
       [ 0.28858624, -0.85573032],
       [ 0.09136066, -0.18119213],
       [ 0.22771687, -0.38492008],
       [ 0.57638829, -0.1548736 ],
       [-0.44766702, -1.54379203],
       [ 0.25673059, -0.5988518 ],
       [ 1.84456887,  0.87042131],
       [ 1.15788161, -0.69886986],
       [ 2.20526679,  0.56201048],
       [ 1.44015066, -0.04698759],
       [ 1.86781222,  0.29504482],
       [ 2.75187334,  0.8004092 ],
       [ 0.36701769, -1.56150289],
       [ 2.30243944,  0.42006558],
       [ 2.00668647, -0.71143865],
       [ 2.25977735,  1.92101038],
       [ 1.36417549,  0.69275645],
       [ 1.60267867, -0.42170045],
       [ 1.8839007 ,  0.41924965],
       [ 1.2601151 , -1.16226042],
       [ 1.4676452 , -0.44227159],
       [ 1.59007732,  0.67624481],
       [ 1.47143146,  0.25562182],
       [ 2.42632899,  2.55666125],
       [ 3.31069558,  0.01778095],
       [ 1.26376667, -1.70674538],
       [ 2.0377163 ,  0.91046741],
       [ 0.97798073, -0.57176432],
       [ 2.89765149,  0.41364106],
       [ 1.33323218, -0.48181122],
       [ 1.7007339 ,  1.01392187],
       [ 1.95432671,  1.0077776 ],
       [ 1.17510363, -0.31639447],
       [ 1.02095055,  0.06434603],
       [ 1.78834992, -0.18736121],
       [ 1.86364755,  0.56229073],
       [ 2.43595373,  0.25928443],
       [ 2.30492772,  2.62632347],
       [ 1.86270322, -0.17854949],
       [ 1.11414774, -0.29292262],
       [ 1.2024733 , -0.81131527],
       [ 2.79877045,  0.85680333],
       [ 1.57625591,  1.06858111],
       [ 1.3462921 ,  0.42243061],
       [ 0.92482492,  0.0172231 ],
       [ 1.85204505,  0.67612817],
       [ 2.01481043,  0.61388564],
       [ 1.90178409,  0.68957549],
       [ 1.15788161, -0.69886986],
       [ 2.04055823,  0.8675206 ],
       [ 1.9981471 ,  1.04916875],
       [ 1.87050329,  0.38696608],
       [ 1.56458048, -0.89668681],
       [ 1.5211705 ,  0.26906914],
       [ 1.37278779,  1.01125442],
       [ 0.96065603, -0.02433167]])

Se anexan estas dos nuevas variables al dataset original

iris["pca_1"] = scaled[:,0]
iris["pca_2"] = scaled[:,1]
#iris["pca_3"] = scaled[:,2]
#iris["pca_4"] = scaled[:,3]
iris

	sepal_length	sepal_width	petal_length	petal_width	species	pca_1	pca_2
0	5.1	3.5	1.4	0.2	setosa	-0.900681	1.019004
1	4.9	3.0	1.4	0.2	setosa	-1.143017	-0.131979
2	4.7	3.2	1.3	0.2	setosa	-1.385353	0.328414
3	4.6	3.1	1.5	0.2	setosa	-1.506521	0.098217
4	5.0	3.6	1.4	0.2	setosa	-1.021849	1.249201
...	...	...	...	...	...	...	...
145	6.7	3.0	5.2	2.3	virginica	1.038005	-0.131979
146	6.3	2.5	5.0	1.9	virginica	0.553333	-1.282963
147	6.5	3.0	5.2	2.0	virginica	0.795669	-0.131979
148	6.2	3.4	5.4	2.3	virginica	0.432165	0.788808
149	5.9	3.0	5.1	1.8	virginica	0.068662	-0.131979

150 rows × 7 columns

sns.pairplot(iris)

<seaborn.axisgrid.PairGrid at 0x7f3b886336d0>

Graficando el conjunto de datos reducido

sns.jointplot(x = iris["pca_1"], y = iris["pca_2"], hue = iris["species"])

<seaborn.axisgrid.JointGrid at 0x7f3b8a562fd0>

Created in Deepnote
